Lightning Protection Systems for Reinforced Concrete Bridges
- Phillip Boykin
- Feb 26
- 6 min read
This post offers insights into designing effective Lightning Protection Systems (LPS) for reinforced concrete bridges in Florida, referencing industry standards like NFPA 780, UL 96A, and the FDOT Structures Manual. Readers will learn about key design parameters, grounding and bonding techniques, safeguarding electrical systems, and best practices for ensuring long-term performance.
Relevant Codes and Standards for Bridge Lightning Protection
Various standards and guidelines outline best practices and requirements for protecting structures, including reinforced concrete bridges, from lightning strikes. Prominent among these is NFPA 780: Standard for the Installation of Lightning Protection Systems, which offers detailed guidance on system design, component placement, grounding, and bonding. Some highlights from NFPA 780 include recommended conductor sizes (often heavy-gauge copper or aluminum braded cables), the importance of bonding all structural metal components, and preferred spacing for air terminals to intercept lightning strikes to shield exposed surfaces.
Additional key standards include:
UL 96A: Standard for Installation Requirements for Lightning Protection Systems, which covers the safe and effective use of air terminals, bonding conductors, and grounding electrodes in various structures.
IEC 62305: International standard detailing protection against lightning, providing risk assessment methodologies and design considerations for different building types and structures.
AASHTO LRFD Bridge Design Specifications: While not solely focused on lightning, these specifications guide the overall structural design of bridges and can complement LPS design considerations.
FDOT Structures Manual: Contains specific requirements for bridges in Florida, including movable bridges, ensuring compliance with local regulations and unique environmental challenges.
NFPA 780
These codes and standards provide a framework for effectively integrating lightning protection systems into bridge structures, safeguarding both the structural integrity and any critical electrical systems. Understanding recommended conductor sizes, bonding practices, and grounding methods helps engineers implement robust and compliant solutions.
Lightning Protection Systems for Reinforced Concrete Bridges
Reinforced concrete bridges are vital and common components of modern roadway networks, enabling the uninterrupted flow of goods, people, and services across diverse natural and artificial barriers. While these structures are designed to withstand a multitude of environmental and operational challenges, the threat posed by lightning strikes is sometimes underappreciated. Effective lightning protection systems (LPS) are essential to improving integrity, enhancing durability, and reducing maintenance costs of these critical assets.
Bridges, due to their often isolated and elevated nature, are natural lightning targets. A direct strike can inflict damage in various ways. The thermal energy generated during a lightning event may induce cracking or spalling of concrete, undermining its reinforcement protection and structural properties. Additionally, lightning surges can damage integrated electrical and communication systems, such as cameras, traffic signaling equipment, and SCADA controls (for movable or monitored bridges). In regions like Florida, where thunderstorms are frequent, the proper design and installation of an LPS becomes especially important for ensuring resilience and longevity.
Reinforcing Steel in Lightning Protection Systems
Reinforcing steel embedded within concrete plays an important role in the effectiveness of an LPS, as prescribed by NFPA 780. Reinforcement steel must be properly bonded, establishing a continuous, low-impedance pathway for lightning currents. This can be achieved through mechanical connections or exothermic welding to ensure electrical continuity among reinforcement bars. Integration with air terminals, down conductors, and grounding systems facilitates the efficient transfer of electrical energy into the ground. Minimizing impedance by utilizing direct, short, and linear connections is critical for optimal performance. Moreover, incorporating corrosion prevention measures and conducting regular inspections are essential for maintaining LPS integrity over the lifecycle of the bridge, especially for bridges in corrosive environments.
Enhancing Grounding with Concrete-Encased Electrodes and Bridge Piles
Concrete-encased electrodes, commonly referred to as “Ufer grounds,” are a cornerstone of contemporary LPS design. Concrete’s inherent conductivity enables the dispersion of lightning currents across a broad area, mitigating localized thermal and electrical stresses. Reinforcement steel within the concrete acts as a conduit for energy dissipation. Additionally, bridge piles, which penetrate soil layers with varying conductivity, enhance the grounding system by providing low-resistance pathways into the earth. By integrating bridge piles into the grounding architecture, engineers introduce redundancy and improve the system’s capacity to manage high-energy events. These elements, being integral to the bridge’s foundation, provide an efficient and cost-effective dual purpose as structural and grounding components.
Safeguarding Intelligent Transportation Systems and Roadway Lighting
The inclusion of intelligent transportation systems (ITS) and roadway lighting on modern bridges introduces additional vulnerabilities to lightning strikes. Components such as cameras, vehicle sensors, pavement condition sensors, and light fixtures are susceptible to high-voltage surges. To protect these elements, ITS devices and lighting installations must be considered during LPS design. Embedded down conductors provide direct pathways for electrical energy to reach the grounding system, reducing potential damage to sensitive electronics. Strategically placed air terminals near these components intercept lightning strikes before they reach vulnerable equipment. Surge protection devices on power and communication conductors are critical for safeguarding sensitive electronics and control systems by diverting high-voltage transient currents to ground, thereby minimizing damage from lightning strikes and other overvoltage events.
FDOT Structures Manual Requirements for Movable Bridges
The Florida Department of Transportation (FDOT) Structures Manual outlines specific requirements for lightning protection on movable bridges, given their unique operational and structural challenges. Movable bridges house critical electrical and mechanical systems that are particularly vulnerable to lightning-related damage. FDOT mandates comprehensive LPS for movable bridges and points to NFPA 780 for design requirements. Furthermore, movable components, such as bridge spans, require flexible bonding connections to maintain electrical continuity during motion. Engineers must ensure that lightning protection elements are seamlessly incorporated into the structural, mechanical, and electrical design to safeguard these systems from lightning damage. Compliance with these requirements, along with routine inspections and testing, enhances the safety and resilience of movable bridge infrastructure.
Retrofit Examples and the Benefits of Early Planning

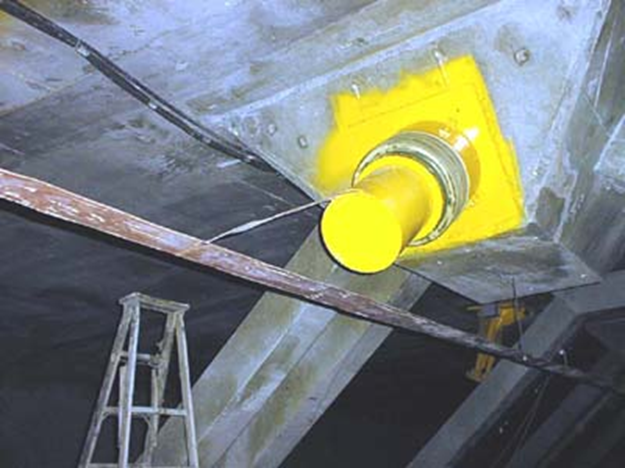

Retrofitting existing bridges with lightning protection systems can be more complex and costly compared to integrating LPS components during initial construction. For instance, the Sunshine Skyway Bridge in Tampa, Florida, underwent LPS retrofit measures to address vulnerabilities discovered post-construction.
Because the structure spans a wide expanse of Tampa Bay and rises prominently above the water, it is frequently exposed to lightning events. Installing new air terminals and dedicated down conductors required careful coordination to avoid interfering with traffic, structural elements, and sensitive equipment. Despite the success of these measures, retrofits generally involve increased construction costs, extended shutdowns or lane closures, and more intricate installation procedures when compared to incorporating LPS features from the outset.
Early planning during bridge design and construction allows engineers to embed conductors in the concrete, bond reinforcement steel more efficiently, and seamlessly integrate grounding systems into the foundational elements. This holistic approach streamlines installation, reduces labor costs, and often results in a more reliable and visually unobtrusive system. By contrast, retrofitting after a bridge is operational may necessitate additional materials, specialized installation techniques, and potential compromise on ideal conductor routes and bonding methods.
Collaboration in Design and Construction
Effective implementation of an LPS relies on collaboration among structural engineers, lightning protection engineers, and contractors. Integrating lightning protection elements during the design phase ensures optimal placement and connectivity of key components, such as reinforcing steel, down conductors, and air terminals. During construction, exposed reinforcement steel provides an ideal opportunity for establishing bonding connections, while embedding down conductors prior to concrete curing eliminates the need for costly retrofits. Interdisciplinary collaboration reduces installation costs and ensures that the LPS functions as an intrinsic component of bridge design instead of an afterthought.
Ongoing Maintenance & Inspection
For maximum effectiveness, lightning protection systems should be inspected on a regular basis—at least annually or after major storms—to verify conductor connections, grounding resistance, and overall system integrity. Periodic testing can identify corrosion or damaged components that might compromise performance. By fostering interdisciplinary collaboration, adhering to established standards, and conducting routine maintenance, the engineering community can protect bridges against the formidable force of lightning, ensuring their continued service to the communities and economies they support.
Conclusion
Lightning protection systems are a crucial aspect of bridge design, construction, and maintenance. Through the proper bonding of reinforcement steel, the use of a robust grounding electrode network, and the integration of electrical and mechanical systems into the broader LPS framework, engineers can enhance the safety and durability of bridges. In lightning-prone regions like Florida, these measures are especially important.
